Free-living use of artificial pancreas for children with type 1 diabetes: systematic review

Klemen Dovc; Gül Yeşiltepe Mutlu; Yury I. Philippov; Dmitry N. Laptev; Evgenia M. Patrakeeva; Lubov O. Chernilova; Alsu G. Zalevskaya; Marina V. Shestakova; Tadej Battelino

doi:10.14341/DM9714

Free-living use of artificial pancreas for children with type 1 diabetes: systematic review

Klemen Dovc, Gül Yeşiltepe Mutlu, Yury I. Philippov, Dmitry N. Laptev, Evgenia M. Patrakeeva, Lubov O. Chernilova, Alsu G. Zalevskaya, Marina V. Shestakova, Tadej Battelino

https://doi.org/10.14341/DM9714

Full Text:

PDF (Rus) PDF (Eng) HTML HTML (Rus) XML XML (Rus)

Generate QR code

Contents

Scroll to:

Abstract

BACKGRAUND: A closed-loop glucose control system or ‘artificial pancreas’ consists of three components – a Continuous Glucose Monitor (CGM), infusion pumps to deliver hormone(s) and a sophisticated dosing algorithm to control hormone delivery. In the past years, numerous studies with closed-loop system devices were conducted with gradual shift to out-of-hospital environment and with lengthening study duration.

AIMS: To compare efficacy and safety of closed-loop insulin pump use in children with type 1 diabetes mellitus in compare with conventional insulin treatment (continuous subcutaneous insulin infusion (CSII) with our without CGM) based on randomized control trials data (RCT).

METHODS: In the systematic review we have include 28 randomized controlled trials results indexed in PubMed, Medline databases published till 15 June 2017. The efficacy on metabolic control in this study evaluated by the proportion of time within target range (preferably 70 to 180 mg/dl if reported) and mean (median) glucose based on sensor measurements, and the safety evaluated by time in hypoglycemia (below 70 mg/dl if reported).

RESULTS: Increased time in range in the night period was observed in all RCT. Only 3 RCT showed decrease of the time in range within 24 h evaluation period. In one RCT the significant positive differences have been shown in the time in range for dual hormone closed-loop glucose control system in compare with insulin-only artificial pancreas. Mean glycaemia and glucose variability changes were not in the same manner in different RCT, both in the night only and in 24 h estimation period. Night hypoglycemia duration decreased in most RCT with closed-loop control in compare with CSII, and increased only in 2 RCT. When all-day estimation period the time in hypoglycemia changed not in the same manner in different RCT. Valuable methodology differences of the glycaemic control estimation within observed RCT brought significant complications in the data analysis and made impossible the results quantitative estimation to prepare a metaanalysis.

CONCLUSIONS: Much work has been done to develop effective and safe artificial pancreas, but not all RCTs confirmed advantages of closed-loop glucose control in compare with CSII in children and adolescents in real life. More research with prospective randomized control design required to prove benefits of closed-loop glucose control. Further RCTs should have an uniform methodology for glycemic control assessment and long duration that will allow to use cumulative measures in a closed-loop efficacy estimation (HbA1c).

Keywords

Diabetes Mellitus, Type 1, Insulin Infusion Systems, Pancreas, Artificial, Closed-Loop, CSII, CGM, sensor augmented pump, systematic review, randomized control trial, children

For citations:

Dovc K., Mutlu G.Ye., Philippov Yu.I., Laptev D.N., Patrakeeva E.M., Chernilova L.O., Zalevskaya A.G., Shestakova M.V., Battelino T. Free-living use of artificial pancreas for children with type 1 diabetes: systematic review. Diabetes mellitus. 2018;21(3):206-216. https://doi.org/10.14341/DM9714

Introduction

Precise glucose control is crucial for patients with type 1 diabetes [1]. More than 20 years ago results of Diabetes Control and Complications Trial (DCCT) and the Epidemiology of Diabetes Interventions and Complications (EDIC) follow-up study of the DCCT cohort showed that most people with type 1 diabetes should be treated intensively to achieve glycated hemoglobin A1c (HbA1c) levels as close to normal as possible and as early as possible in the course of the disease to prevent or postpone the late disease complications [2]. Consequently, intensive day-to-day management remains the standard of care in type 1 diabetes management recommendations [3]. However, an up-to-date data based on national registries show that an important proportion of the patients worldwide do not reach the goal of desired metabolic control [4–7], which is HbA1c below 7.0% (53 mmol/ mol) for adults [8] and below 7.5% (58 mmol/mol) for children and adolescents [9, 10]. There is a strong surge for technologies that could provide intensive insulin therapy and thereby improve metabolic control and at the same time minimizing glucose excursions that can be harmful for developing brain structure [11–13].

Continuous glucose monitoring (CGM) can enable patients, their families and care-givers as well as clinicians to make better-informed decisions on how to control blood glucose levels, but only when this is fully adopted in day-to-day care [14, 15]. Improvements in recent years have allowed for better accuracy and simplicity of CGM use, and, consequently, more successful implementation [16], effective also with non-adjuvant use [17, 18]. Sensor-augmented insulin pump therapy and threshold-suspend features added to CGM may additionally reduce the burden of hypoglycemia and increase time in target range, but there is limited effect on time in hyperglycemia [19].

A closed-loop system or artificial pancreas consists of three components – a CGM, infusion pumps to deliver hormones, and a sophisticated dosing algorithm [20, 21] to control single (insulin) our dual (insulin and glucagon – also called bihormonal or bionic system) hormone delivery. In the past years, numerous studies with closed-loop system devices were conducted with gradual shift to out-of-hospital environment and with lengthening study duration.

With the present review we are outlining data from randomized controlled trials with out-of-hospital closed loop glucose control for patients with type 1 diabetes.

Data Source

We searched PubMed from database inception until 15^th of July, 2017, using the search terms and medical subject headings (MeSH) artificial pancreas OR closed-loop OR closed loop in outpatient setting (home OR outpatient OR camp OR hotel) in patients with type 1 diabetes for reports of randomized controlled trials. References and related citations of articles were screened to identify other relevant articles. To be included into the review, studies had to be RCTs comparing closed-loop use with conventional insulin treatment (CSII with our without CGM) and the study aim to achieve an improvement in metabolic control with reported glycemic outcomes analysis. The primary endpoint of this review was proportion of time within target range (preferably 70 to 180 mg/dl if reported, additionally we looked also into time in hypoglycemia (below 70 mg/dl if reported) and mean (median) glucose based on sensor measurements [22]. In present review we followed PRISMA (Preferred Reporting Items for Systematic Reviews and Meta-analyses) statement and checklist.

Results

We present search results, number of trials reviewed and selected in Figure 1. Twenty-nine reports on 28 randomized controlled trials containing and analyzing data on 739 adults, children and adolescents with type 1 diabetes were included into this review (Table 1). Thirteen comparisons evaluated glycemic control for the overnight period, in 14 trials the observational period was both day and night, one trial evaluated day and night glycemic control for the adult population and overnight for pediatric population. In 15 RCTs the model predictive control (MPC) algorithm was used, proportional integrative derivative (PID) in nine, four used fuzzy logic algorithm driven closed-loop. Clinical trials were diverse in number of patients included (from eight to 75), duration of observational period (from one night to 12 weeks), clinical setting (camp, hotel, at home) and included participant’s average age. Two clinical trials appraised both dual and single hormone system in a three-way comparison, five trials evaluated dual hormone system use, and all the other trials appraised single hormone system. The usual comparator was sensor augmented pump (SAP), in three trials with low glucose suspend (LGS) function turned on, in all three the comparator was single hormone system.

Figure 1. Study flowchart for selection of trials for inclusion.

Table 1. Overview of glycemic control for randomized controlled trials on outpatient use of closed-loop in type 1 diabetes by years and observational period

OVERNIGHT STUDIES
Year	First author (Ref.)	Participants (n)	Age (mean)	Study duration	Intervention	Study outcomes	Outcome difference: Intervention vs. Control	P value
2013	Philip [23]	54	13.8	1 night	Fuzzy Logic/Single	Time in target range Time in hypoglycemia Mean glucose	1.4 (h) 0% -14 mg/dL	<0.05 0.02 <0.05
2014	Hovorka [24]	16	15.6	3 weeks	MPC/Single	Time in target range Time in hypoglycemia Mean glucose	15% -7% -14 mg/dL	<0.001 <0.01 <0.001
2014	Nimri [25]	21	21.2	6 weeks	Fuzzy Logic / Single	Time in target range Time in hypoglycemia Mean glucose	21.8% -40.2% -15 mg/dL	0.003 0.020 0.008
2014	Nimri [26]	15	19.0	4 nights	Fuzzy Logic / Single	Time in target range Time in hypoglycemia Median glucose	1.3 h -44.9 min 3.5 mg/dL	0.0479 0.0034 0.8148
2014	Ly [27]	20	15.3	5-6 nights	PID / Single	Time in target range Time in hypoglycemia Mean glucose	7% / 1 mg/dL	0.233 / 0.887
2014	Thabit [28]	24	43	4 weeks	MPC / Single	Time in target range	12%	0.0004
2014	Thabit [28]	24	43	4 weeks	MPC / Single	Time in hypoglycemia Mean glucose	-0.3% -14.4 mg/dL	0.28 0.0052
2015	Brown [29]	10	46.4	5 nights	PID / Single	Time in target range Time in hypoglycemia Mean glucose	26.30% -0.99% -31.3 mg/dL	<0.001 NS <0.001
2015	Haidar [30]	33	13.3	3 nights	MPC / Dual / Single	Time in target range Dual CL vs. SAP Single CL vs. SAP Time in hypoglycemia Dual CL vs. SAP Single CL vs. SAP	33% 16% -1.7% 0%	<0.001 0.0003 0.0048 0.32
2015	Kropff [31]	32	47	12 weeks	MPC / Single	Time in target range Time in hypoglycemia Decrease in HbA1C	8.6% -1.0% -0.3%	<0.0001 0.00022 0.047
2015	Thabit [32] (children)	25	12	12 weeks	MPC / Single	Time in target range Time in hypoglycemia Mean glucose	8.9% 0.82% -9 mg/dL	<0.001 0.18 0.01
2016	Haidar [33]	28	33.3	2 nights	MPC / Dual / Single	Time in target range Dual CL vs. SAP Single CL vs. SAP Time in hypoglycemia Dual CL vs. SAP Single CL vs. SAP	22% 15% -7 % 6 %	<0.001 <0.001 <0.001 0.004
2016	Ly [34]	21	14.7	5-6 nights	PID / Single	Time in target range Time in hypoglycemia Mean glucose	15.8% 14.1% 4	0.0038 0.0011 0.6494
2016	Sharifi [35]	28	42 (adults) 15.2 (children)	4 nights	PID / Single Vs. LGS	Time in target range Time in hypoglycemia Mean glucose	6.2% 1.1% 2.0 mg/dl	0.13 <0.001 0.68
2017	Nimri [36]	75	19.5	4 nights	Fuzzy Logic / Single	Time in target range Time in hypoglycemia Mean glucose	13.5% -0.53% -7.9 mg/dl	0.001 0.004 0.334
DAY AND NIGHT OBSERVATIONAL PERIOD
Year	First author (Ref.)	Participants (n)	Age (mean)	Study duration	Intervention	Study outcomes	Outcome difference: Intervention vs. Control
2014	Leelarathna [37]	17	34	16 days	MPC / Single	Time in target range Time in hypoglycemia Mean glucose	13% 1.3% -12.6 mg/dL	0.005 0.339 0.027
2014	Kovatchev [38]	18	46	80 h	PID / Single	Time in target range Time in hypoglycemia Mean glucose	-4.6% -0.55% 9 mg/dL	>0.1 >0.1 <0.04
2014	Russell [39]	52	56 (adults) 16 (children)	5 days	MPC / Dual	Time in target range Time in hypoglycemia Mean glucose	20.7% (adults) 11.4% (children) -3.2% (adults) -1.8% (children) -26 mg/dL (adults) -16 mg/dL (children)	<0.001 <0.001 0.01 0.05 <0.01 0.04
2015	Thabit [32] (Adults)	33	40	12 weeks	MPC / Single	Time in target range Time in hypoglycemia Mean glucose	11% 0.8% -11 mg/dL	<0.001 0.02 <0.001
2015	Ly [40]	20	18.6	6 days	PID / Single Vs. LGS	Time in target range Time in hypoglycemia Mean glucose	-3.2% -0.3% 10 mg/dL	0.580 0.656 0.274
2015	De Bock [41]	8	Unknown	5 days	PID / Single Vs. LGS	Time in target range Time in hypoglycemia Median glucose	6.4% 0.1% -12.6 mg/dL	0.30 0.84 0.86
2016	Blauw [42]	10	41	3 days	PID / Dual	Time in target range Time in hypoglycemia Median glucose	16.2% -1.1% -7.2 mg/dL	0.007 0.139 0.123
2016	Russell [43]	19	9.8	5 days	MPC / Dual	Time in target range Time in hypoglycemia Mean glucose	23% 1.6% -30.6 mg/dL	<0.0001 <0.0001 0.00037
2016	Tauschmann [44]	12	14.6	3 weeks	MPC / Single	Time in target range Time in hypoglycemia Mean glucose	18.8% 0.4% -32.4 mg/dL	<0.001 0.33 0.001
2016	Del Favaro [45]	30	7.6	72 h	MPC / Single	Time in target range Time in hypoglycemia Mean glucose	-6.3% -4.7% 12 mg/dL	0.022 <0.001 <0.001
2016	Tauschmann [46]	12	15.4	7 days	MPC / Single	Time in target range Time in hypoglycemia Mean glucose	19% 1.2% -25.2 mg/dL	<0.01 0.87 0.028
2017	El Khatib [47]	43	33.3	11 days	MPC/Dual	Time in target range Time in hypoglycemia Mean glucose	16.5% -1.3% -19.8 mg/dL	<0.0001 <0.0001 <0.0001
2017	Haidar [48]	23	41	60 h	MPC/Dual	Time in target range Dual CL vs. SAP Single CL vs. SAP Time in hypoglycemia Dual CL vs. SAP Single CL vs. SAP	3.2% 3.0% -4.0% -3.4%	0.31 0.41 0.002 0.001
2017	De Boer [49]	12	7	3 days	PID/Single	Time in target range Time in hypoglycemia Mean glucose	26% -0.5% -38 mg/dL	<0.001 NS <0.001
2017	Bally [50]	28	41	4 weeks	MPC/Single	Time in target range Time in hypoglycemia Mean glucose	10.6% -2.4% -7.2 mg/dL	<0.0001 <0.0001 0.0226

Comments: LGS – low glucose suspend, MPC - model predictive control, NS – not significant, PID – proportional integrative derivative, SAP – sensor augmented pump

Time in target glycemic range

The first RCT contrasted single hormone closed-loop control with SAP in outside hospital settings in 2013, including 54 adolescents with type 1 diabetes [23]. Median time (IQR) within range 70 to 140 mg/dl for the overnight period was 4.4 (2.8 to 6.7) hours with closed-loop compared to 2.8 (1.5 to 4.4) hours with SAP (p<0.05).

In next four years additional eleven trials including 348 participants evaluated overnight glycemic control with single hormone closed-loop control. In all but two there was a significant improvement in time spent in target range (Table 1).

From the year 2014 several trials with single-hormone closed-loop control evaluation and 24/7 observational period showed significant improvement in time spent within target range [31, 32, 37, 44–46]. Out of those, Thabit and colleagues reported the longest randomized out of hospital study to date. Participants including both adults (evaluated for day and night period) and children (only overnight period) that were evaluated for 12-week period with closed-loop and than sensor-augmented pump glucose control or other way around. Among both adults and children the percentage of time when the glucose was within target range was increased with closed-loop glucose control (for adult population with paired difference 11%, p<0.001 and with 8.9 %,p<0.001 for children) [32].

Additional three trials compared closed-loop glucose control to LGS feature enabled SAP [35, 40, 51], none showed improvement in time spent within range.

Seven trials including 101 children and adolescents and 117 adults contrasted the use of dual hormone closed-loop with SAP in outpatient setting. Six out of seven trials revealed a significant increase in time spent within target range [30, 33, 39, 42, 43, 47].

Three trials had a three-way comparison design between dual-hormone (insulin and glucagon) closed-loop, single-hormone closed-loop and conventional insulin pump therapy. Only one of them showed a significant difference between dual-hormone single-hormone closed-loop glucose control in terms of time spent within target range (p=0.032) [30].

To date only two outpatient day-and-night trials evaluated the use of closed-loop in young preadolescent children [43, 45]. These two studies included 19 and 30 children aged 6-11 years and 5-9 years, respectively. In the former trial the use of dual-hormone closed-loop resulted in a significant improvement in time spent within target range comparing SAP (p<0.0001) [43]. Similarly, the second one showed a significant (p=0.022) improvement in the percentage of time spent in target range with single-hormone closed-loop glucose control [45].

Time spent in hypoglycemia

In nine out of ten outpatient RCTs single-hormone closed loop glucose control reduced time spent in hypoglycemia (Table 1). The difference between two treatment modalities was less pronounced for the 24/7 observational period where only three trials reported reduced time spent hypoglycemia during single-hormone closed-loop use [31, 32, 45].

Compared to LGS enabled feature treatment group single-hormone closed-loop use improved time in hypoglycemia in one out of three trials [35].

For the subgroup of trials with dual-hormone systems closed-loop insulin-delivery reduced time spent in hypoglycemia (p=0.048, p<0.01, p<0.0001, p<0.0001, p=0.017) in five RCTs [33, 43, 47, 48, 52], in one trial including both adult and adolescent population the percentage of time in hypoglycemia was reduced in adult population (p=0.001), but not among adolescents (p=0.23) [39]. Likewise, another dual closed loop study failed to show a significant difference (p=0.139) in the percentage of time spent in hypoglycemia [42]. In a three way comparison dual-hormone system improved time spent in hypoglycemia below 76 mg/dl (p=0.032) in one of three RCTs comparing single-hormone closed-loop use [30].

Mean glucose and glucose variability

Nine trials (four for overnight and five for 24/7 evaluation) with single-hormone and additional four with dual-hormone use showed a significantly reduced mean (median) glucose during single-hormone closed-loop (Table 1). In two trials mean glucose was increased [38, 45] and in other seven there was no difference between the treatment groups, including the comparison between single and dual-hormone system (Table 1).

To date, several trials comparing closed loop with SAP reported significantly lower glucose variability [23, 25, 31, 32, 37]. However, no significant decrease was showed in eight additional trials including 202 participants [28, 29, 34, 36, 38, 45, 46], and a trial conducted on 16 adolescents reported an increase of 3% in glucose variability within each night (p<0.003) [24]. Compared to LGS system closed-loop glucose control reduced glucose variability in one trial [35], in other two this glucose outcome was not reporeted.

Similar observations were reported in a subgroup of trials with dual hormone system used, where four out of seven trials achieved significant decrease in glucose variability [39, 42, 43, 47] and the remaining three studies revealed no significant difference in glucose variability [30, 33, 48].

Discussion

Closed-loop glucose control represents the state-of-the art in type 1 diabetes management and with rapid development in recent years promises to become a part of unsupervised clinical care [53, 54]. Current data almost unanimously support the use of closed-loop as safe and efficacious therapeutic option, with clinically relevant improvement in time spent in target range. Recent meta-analysis showed clinically significant improvement of more than 12 % of time spent in target range with the use of closed-loop systems compared to glucose control without computer algorithm [55], and without increased risk of hypoglycemia or blood glucose excursions. This was achieved with both dual-hormone and single-hormone system. Head to head comparison between both systems revealed slight difference favoring dual-hormone system [52]. Closed-loop glucose control was effective also in reducing time in hypoglycemia. The difference was more pronounced for the overnight period. There was little improvement in time in range or time in hypoglycemia compared to LGS systems. However, closed-loop reduced glucose variability, which can be harmful for developing brain in children.

As this glycemic outcome was not accessed in all trials, it is impossible to draw generalized conclusions on the main question of this review. Also within this review we didn’t estimate the effectiveness of closed-loop systems in compare with conventional CSII by HbA_1c because of the extremely short duration of published RCTs.

Due to lack in consistency in terms of reporting basic glycemic outcome measures between study reports, a consensus statement was published recently to enable unified outcomes reporting and with it easier interpretation of study results and widespread use to improve the lives of people with type 1 diabetes [22].

Conclusion

Much work has been done to develop effective and safe artificial pancreas, but not all RCTs confirmed advantages of closed-loop glucose control in compare with CSII in children and adolescents in real life. Absence of uniform methodology for glycemic control assessment (glycemic variability indexes, target ranges, hypo- and hyperglycaemia levels) makes impossible a quantitative comparison of different RCTs results. Further RCTs with a uniform methodology for glycemic control assessment required to prove benefits of closed-loop glucose control. Future researches should have also enough duration to make usable cumulative measures in a closed-loop efficacy estimation (HbA1c).

Additioanl info

Funding. The study was funded in part by the University Medical Centre Ljubljana Research and Development (Grant no. 20110359). K.Dovc and T.Battelino were funded in part by the Slovenian National Research Agency Grants no. J3–6798, V3–1505 and P3–0343. G.Y.Mutlu was funded in part by the ESPE Research Fellowship Grant 2016. The funders of the study had no role in data interpretation or writing of the report.

Conflict of interests statement. Authors declare no conflict of interests to be correspond.

Authors contribution. All authors contributed equally to the review. All authors have read and approve the final version of the manuscript.

References

1. Fullerton B, Jeitler K, Seitz M, et al. Intensive glucose control versus conventional glucose control for type 1 diabetes mellitus. In: Fullerton B, editor. Cochrane Database of Systematic Reviews. Chichester, UK: John Wiley & Sons, Ltd; 2014. p. CD009122. doi: 10.1002/14651858.CD009122.pub2

2. Nathan DM, Cleary PA, Backlund J-YC, et al. Intensive Diabetes Treatment and Cardiovascular Disease in Patients with Type 1 Diabetes. N Engl J Med. 2005;353(25):2643–53. doi: 10.1056/NEJMoa052187

3. American Diabetes Association. Executive summary: Standards of medical care in diabetes - 2014. Diabetes Care. 2014;37:S5–13. doi: 10.2337/dc14-S005

4. Miller KM, Foster NC, Beck RW, et al. Current state of type 1 diabetes treatment in the U.S.: Updated data from the t1d exchange clinic registry. Diabetes Care. 2015;38(6):971–8. doi: 10.2337/dc15-0078

5. Dovc K, Telic SS, Lusa L, et al. Improved metabolic control in pediatric patients with type 1 diabetes: a nationwide prospective 12-year time trends analysis. Diabetes Technol Ther. 2014;16(1):33–40. doi: 10.1089/dia.2013.0182

6. Rosenbauer J, Dost A, Karges B, et al. Improved metabolic control in children and adolescents with type 1 diabetes: A trend analysis using prospective multicenter data from Germany and Austria. Diabetes Care. 2012;35(1):80–6. doi: 10.2337/dc11-0993

7. Eeg-Olofsson K, Cederholm J, Nilsson PM, et al. Glycemic and risk factor control in type 1 diabetes: Results from 13,612 patients in a national diabetes register. Diabetes Care. 2007;30(3):496–502. doi: 10.2337/dc06-1406

8. American Diabetes Association. Glycemic targets. Diabetes Care. 2017;40(Suppl 1):S48–56. doi: 10.2337/dc17-S009

9. Rewers MJ, Pillay K, de Beaufort C, et al. Assessment and monitoring of glycemic control in children and adolescents with diabetes. Pediatr Diabetes. 2014;15(SUPPL.20):102–14. doi: 10.1111/pedi.12190

10. Harris M, Clark J, Coote N, et al. British Thoracic Society guidelines for the management of community acquired pneumonia in children: Update 2011. Thorax. 2011;66(SUPPL. 2):ii1-23. doi:10.1136/thoraxjnl-2011-200598

11. Mazaika PK, Weinzimer SA, Mauras N, et al. Variations in brain volume and growth in young children with type 1 diabetes. Diabetes. 2016;65(2):476–85. doi: 10.2337/db15-1242

12. Mauras N, Mazaika P, Buckingham B, et al. Longitudinal assessment of neuroanatomical and cognitive differences in young children with type 1 diabetes: Association with hyperglycemia. Diabetes. 2015;64(5):1770–9. doi: 10.2337/db14-1445

13. Diabetes Control and Complications Trial/Epidemiology of Diabetes Interventions and Complications Study Research Group, Jacobson AM, Musen G, et al. Long-Term Effect of Diabetes and Its Treatment on Cognitive Function. N Engl J Med. 2007;356(18):1842–52. doi:10.1056/NEJMoa066397

14. Dovč K, Bratina N, Battelino T. A new horizon for glucose monitoring. Horm Res Paediatr. 2015;83(3):149–56. doi: 10.1159/000368924

15. Langendam M, Luijf YM, Hooft L, et al. Continuous glucose monitoring systems for type 1 diabetes mellitus. In: Langendam M, editor. Cochrane Database of Systematic Reviews. Chichester, UK: John Wiley & Sons, Ltd; 2012. p. CD008101. doi:10.1002/14651858.CD008101.pub2

16. Rodbard D. Continuous Glucose Monitoring: A Review of Recent Studies Demonstrating Improved Glycemic Outcomes. Diabetes Technol Ther. 2017;19(S3):S-25-S-37. doi: 10.1089/dia.2017.0035

17. Edelman S V. Regulation Catches Up to Reality: Nonadjunctive Use of Continuous Glucose Monitoring Data. J Diabetes Sci Technol. 2017;11(1):160–4. doi: 10.1177/1932296816667749

18. Aleppo G, Ruedy KJ, Riddlesworth TD, et al. REPLACE-BG: A randomized trial comparing continuous glucose monitoring with and without routine blood glucose monitoring in adults with well-controlled type 1 diabetes. Diabetes Care. 2017;40(4):538–45. doi:10.2337/dc16-2482

19. Battelino T, Nimri R, Dovc K, et al. Prevention of hypoglycemia with predictive low glucose insulin suspension in children with type 1 diabetes: A randomized controlled trial. Diabetes Care. 2017;40(6):764–70. doi: 10.2337/dc16-2584

20. Nimri R, Phillip M. Artificial pancreas: Fuzzy logic and control of glycemia. Curr Opin Endocrinol Diabetes Obes. 2014;21(4):251–6. doi: 10.1097/MED.0000000000000073

21. Pinsker JE, Lee JB, Dassau E, et al. Randomized crossover comparison of personalized MPC and PID control algorithms for the artificial pancreas. Diabetes Care. 2016;39(7):1135–42. doi: 10.2337/dc15-2344

22. Maahs DM, Buckingham BA, Castle JR, et al. Outcome measures for artificial pancreas clinical trials: A consensus report. Diabetes Care. 2016;39(7):1175–9. doi: 10.2337/dc15-2716

23. Israeli E. Nocturnal glucose control with an artificial pancreas at a diabetes camp. Isr Med Assoc J. 2013;15(5):255. doi: 10.1056/NEJMoa1206881

24. Hovorka R, Elleri D, Thabit H, et al. Overnight closed-loop insulin delivery in young people with type 1 diabetes: A free-living, randomized clinical trial. Diabetes Care. 2014;37(5):1204–11. doi:10.2337/dc13-2644

25. Nimri R, Muller I, Atlas E, et al. MD-logic overnight control for 6 weeks of home use in patients with type 1 diabetes: Randomized crossover trial. Diabetes Care. 2014;37(11):3025–32. doi: 10.2337/dc14-0835

26. Nimri R, Muller I, Atlas E, et al. Night glucose control with MD-Logic artificial pancreas in home setting: A single blind, randomized crossover trial-interim analysis. Pediatr Diabetes. 2014;15(2):91–9. doi: 10.1111/pedi.12071

27. Ly TT, Breton MD, Keith-Hynes P, et al. Overnight glucose control with an automated, unified safety system in children and adolescents with type 1 diabetes at diabetes camp. Diabetes Care. 2014;37(8):2310–6. doi: 10.2337/dc14-0147

28. Thabit H, Lubina-Solomon A, Stadler M, et al. Home use of closed-loop insulin delivery for overnight glucose control in adults with type 1 diabetes: A 4-week, multicentre, randomised crossover study. Lancet Diabetes Endocrinol. 2014;2(9):701–9. doi: 10.1016/S2213-8587(14)70114-7

29. Brown SA, Kovatchev BP, Breton MD, et al. Multinight “Bedside” Closed-Loop Control for Patients with Type 1 Diabetes. Diabetes Technol Ther. 2015;17(3):203–9. doi: 10.1089/dia.2014.0259

30. Haidar A, Legault L, Matteau-Pelletier L, et al. Outpatient overnight glucose control with dual-hormone artificial pancreas, single-hormone artificial pancreas, or conventional insulin pump therapy in children and adolescents with type 1 diabetes: An open-label, randomised controlled trial. Lancet Diabetes Endocrinol. 2015;3(8):595–604. doi: 10.1016/S2213-8587(15)00141-2

31. Kropff J, Del Favero S, Place J, et al. 2 month evening and night closed-loop glucose control in patients with type 1 diabetes under free-living conditions: A randomised crossover trial. Lancet Diabetes Endocrinol. 2015;3(12):939–47. doi: 10.1016/S2213-8587(15)00335-6

32. Thabit H, Tauschmann M, Allen JM, et al. Home Use of an Artificial Beta Cell in Type 1 Diabetes. N Engl J Med. 2015;373(22):2129–40. doi: 10.1056/NEJMoa1509351

33. Haidar A, Rabasa-Lhoret R, Legault L, et al. Single- and Dual-Hormone Artificial Pancreas for Overnight Glucose Control in Type 1 Diabetes. J Clin Endocrinol Metab [Internet]. 2016;101(1):214–23. Available from: https://academic.oup.com/jcem/article-lookup/doi/10.1210/jc.2015-3003doi: 10.1210/jc.2015-3003

34. Ly TT, Keenan DB, Roy A, et al. Automated Overnight Closed-Loop Control Using a Proportional-Integral-Derivative Algorithm with Insulin Feedback in Children and Adolescents with Type 1 Diabetes at Diabetes Camp. Diabetes Technol Ther. 2016;18(6):377–84. doi: 10.1089/dia.2015.0431

35. Sharifi A, De Bock MI, Jayawardene D, et al. Glycemia, Treatment Satisfaction, Cognition, and Sleep Quality in Adults and Adolescents with Type 1 Diabetes When Using a Closed-Loop System Overnight Versus Sensor-Augmented Pump with Low-Glucose Suspend Function: A Randomized Crossover Study. Diabetes Technol Ther. 2016;18(12):772–83. doi: 10.1089/dia.2016.0288

36. Nimri R, Bratina N, Kordonouri O, et al. MD-Logic overnight type 1 diabetes control in home settings: A multicentre, multinational, single blind randomized trial. Diabetes, Obes Metab. 2017;19(4):553–61. doi: 10.1111/dom.12852

37. Leelarathna L, Dellweg S, Mader JK, et al. Day and night home closed-loop insulin delivery in adults with type 1 diabetes: Three-center randomized crossover study. Diabetes Care. 2014;37(7):1931–7. doi: 10.2337/dc13-2911

38. Kovatchev BP, Renard E, Cobelli C, et al. Safety of outpatient closed-loop control: First randomized crossover trials of a wearable artificial pancreas. Diabetes Care. 2014;37(7):1789–96. doi: 10.2337/dc13-2076

39. Russell SJ, El-Khatib FH, Sinha M, et al. Outpatient Glycemic Control with a Bionic Pancreas in Type 1 Diabetes. N Engl J Med. 2014;371(4):313–25. doi: 10.1056/NEJMoa1314474

40. Ly TT, Roy A, Grosman B, et al. Day and night closed-loop control using the integrated Medtronic hybrid closed-loop system in type 1 diabetes at diabetes camp. Diabetes Care. 2015;38(7):1205–11. doi: 10.2337/dc14-3073

41. De Bock MI, Roy A, Cooper MN, et al. Feasibility of outpatient 24-Hour Closed-Loop insulin delivery. Diabetes Care. 2015;38(11):e186–7. doi: 10.2337/dc15-1047

42. Blauw H, van Bon AC, Koops R, DeVries JH. Performance and safety of an integrated bihormonal artificial pancreas for fully automated glucose control at home. Diabetes, Obes Metab. 2016;18(7):671–7. doi: 10.1111/dom.12663

43. Russell SJ, Hillard MA, Balliro C, et al. Day and night glycaemic control with a bionic pancreas versus conventional insulin pump therapy in preadolescent children with type 1 diabetes: A randomised crossover trial. Lancet Diabetes Endocrinol. 2016;4(3):233–43. doi: 10.1016/S2213-8587(15)00489-1

44. Tauschmann M, Allen JM, Wilinska ME, et al. Home use of day-and-night hybrid closed-loop insulin delivery in suboptimally controlled adolescents with type 1 diabetes: A 3-week, free-living, randomized crossover trial. Diabetes Care. 2016;39(11):2019–25. doi: 10.2337/dc16-1094

45. Del Favero S, Boscari F, Messori M, et al. Randomized summer camp crossover trial in 5-to 9-year-old children: Outpatient wearable artificial pancreas is feasible and safe. Diabetes Care. 2016;39(7):1180–5. doi: 10.2337/dc15-2815

46. Tauschmann M, Allen JM, Wilinska ME, et al. Day-and-night hybrid closed-loop insulin delivery in adolescents with type 1 diabetes: A free-living, randomized clinical trial. Diabetes Care. 2016;39(7):1168–74. doi: 10.2337/dc15-2078

47. El-Khatib FH, Balliro C, Hillard MA, et al. Home use of a bihormonal bionic pancreas versus insulin pump therapy in adults with type 1 diabetes: a multicentre randomised crossover trial. Lancet. 2017;389(10067):369–80. doi: 10.1016/S0140-6736(16)32567-3

48. Haidar A, Messier V, Legault L, et al. Outpatient 60-hour day-and-night glucose control with dual-hormone artificial pancreas, single-hormone artificial pancreas, or sensor-augmented pump therapy in adults with type 1 diabetes: An open-label, randomised, crossover, controlled trial. Diabetes, Obes Metab. 2017;19(5):713–20. doi: 10.1111/dom.12880

49. DeBoer MD, Breton MD, Wakeman C, et al. Performance of an Artificial Pancreas System for Young Children with Type 1 Diabetes. Diabetes Technol Ther [Internet]. 2017;19(5):293–8. Available from: http://online.liebertpub.com/doi/10.1089/dia.2016.0424 doi: 10.1089/dia.2016.0424

50. Bally L, Thabit H, Kojzar H, et al. Day-and-night glycaemic control with closed-loop insulin delivery versus conventional insulin pump therapy in free-living adults with well controlled type 1 diabetes: an open-label, randomised, crossover study. Lancet Diabetes Endocrinol. 2017;5(4):261–70. doi: 10.1016/S2213-8587(17)30001-3

51. De Bock MI, Roy A, Cooper MN, et al. Feasibility of outpatient 24-Hour Closed-Loop insulin delivery. Diabetes Care. 2015;38(11):e186–7. doi: 10.2337/dc15-1047

52. Haidar A, Legault L, Messier V, et al. Comparison of dual-hormone artificial pancreas, single-hormone artificial pancreas, and conventional insulin pump therapy for glycaemic control in patients with type 1 diabetes: An open-label randomised controlled crossover trial. Lancet Diabetes Endocrinol. 2015;3(1):17–26. doi: 10.1016/S2213-8587(14)70226-8

53. Bergenstal RM, Garg S, Weinzimer SA, et al. Safety of a Hybrid Closed-Loop Insulin Delivery System in Patients With Type 1 Diabetes. Jama. 2016;316(13):1407. doi: 10.1001/jama.2016.11708

54. Bally L, Thabit H, Hovorka R. Closed-loop for type 1 diabetes - an introduction and appraisal for the generalist. BMC Med. 2017;15(1). doi: 10.1186/s12916-017-0794-8

55. Weisman A, Bai JW, Cardinez M, et al. Effect of artificial pancreas systems on glycaemic control in patients with type 1 diabetes: a systematic review and meta-analysis of outpatient randomised controlled trials. Lancet Diabetes Endocrinol. 2017;5(7):501–12. doi: 10.1016/S2213-8587(17)30167-5

About the Authors

Klemen Dovc

UMC-University Children’s Hospital

Slovenia

Competing Interests:

No conflict of interests

Gül Yeşiltepe Mutlu

Koç University Hospital

Turkey

Competing Interests:

No conflict of interests

Yury I. Philippov

https://www.researchgate.net/profile/Yury_Philippov3

Endocrinology Research Centre

Russian Federation

Competing Interests:

No conflict of interests

Dmitry N. Laptev

Endocrinology Research Centre

Russian Federation

MD, PhD

Competing Interests:

No conflict of interests

Evgenia M. Patrakeeva

Pavlov First Saint Petersburg State Medical University

Russian Federation

Competing Interests:

No conflict of interests

Lubov O. Chernilova

Pavlov First Saint Petersburg State Medical University

Russian Federation

Competing Interests:

No conflict of interests

Alsu G. Zalevskaya

Pavlov First Saint Petersburg State Medical University

Russian Federation

MD, PhD

Competing Interests:

No conflict of interests

Marina V. Shestakova

Endocrinology Research Centre

Russian Federation

MD, PhD, Professor

Competing Interests:

No conflict of interests

Tadej Battelino

UMC-University Children’s Hospital, Ljubljana; University of Ljubljana

Slovenia

MD, PhD, Professor

Competing Interests:

No conflict of interests

Supplementary files

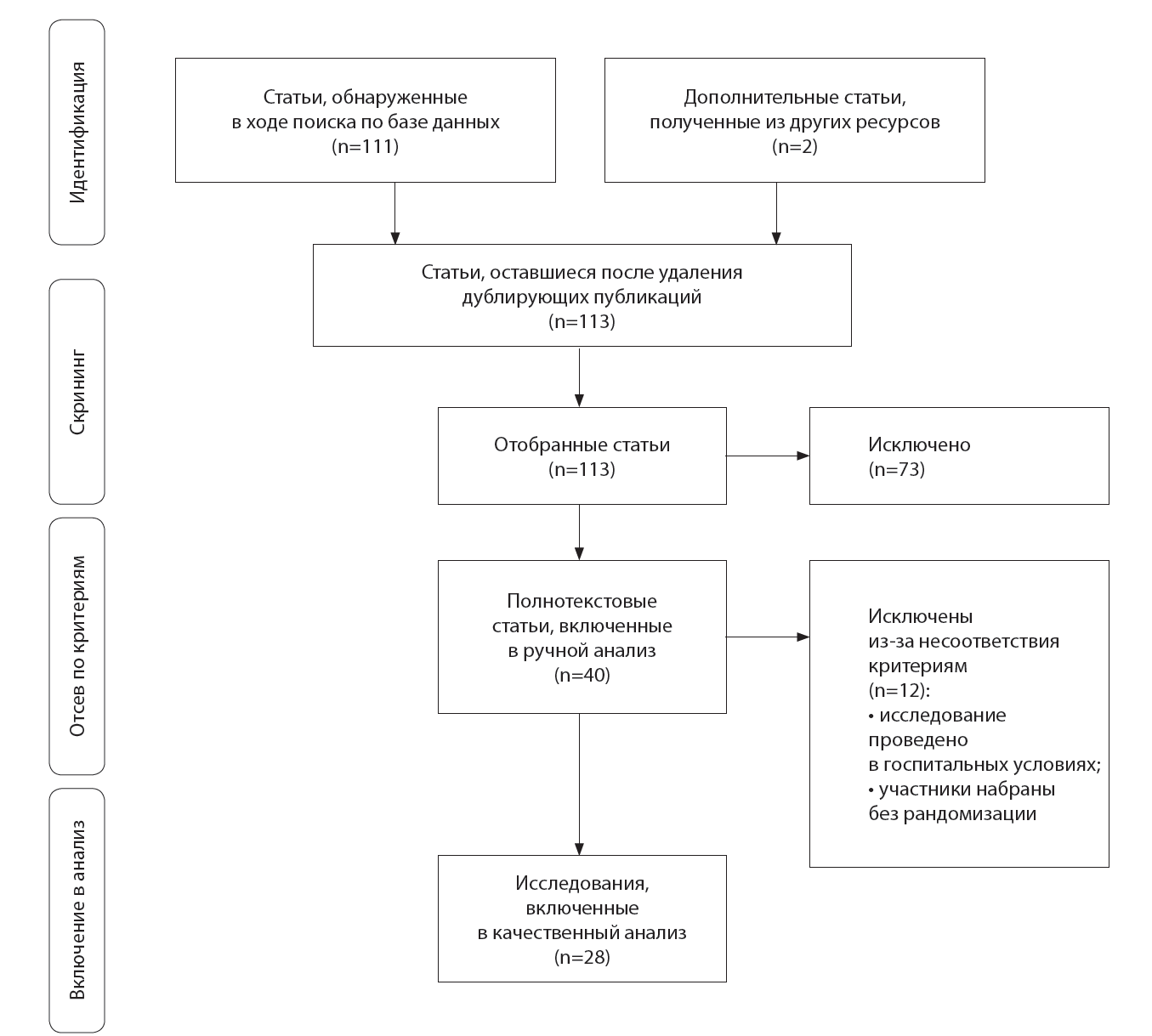

	1. Fig. 1. Methods of selecting studies for a systematic review (scheme).
	Subject
	Type	Исследовательские инструменты
	View (111KB)	Indexing metadata ▾

	2. Figure 1. Study flowchart for selection of trials for inclusion.
	Subject
	Type	Research Instrument
	View (52KB)	Indexing metadata ▾

Review

For citations:

This work is licensed under a Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 International License (CC BY-NC-ND 4.0).

ISSN 2072-0351 (Print)
ISSN 2072-0378 (Online)

Username
Password
	Remember me
Not a user? Register with this site Forgot your password?

	Title	Fig. 1. Methods of selecting studies for a systematic review (scheme).
	Type	Исследовательские инструменты
	Date	2018-09-04
Digital Object Identifier	https://doi.org/10.14341/DM9714-3111

	Title	Figure 1. Study flowchart for selection of trials for inclusion.
	Type	Research Instrument
	Date	2018-09-04
Digital Object Identifier	https://doi.org/10.14341/DM9714-3112

User

Diabetes mellitus

Free-living use of artificial pancreas for children with type 1 diabetes: systematic review

Full Text:

Abstract

Keywords

For citations:

Introduction

Data Source

Results

Time in target glycemic range

Time spent in hypoglycemia

Mean glucose and glucose variability

Discussion

Conclusion

Additioanl info

References

About the Authors

Supplementary files

Review

For citations:

Cookies policy
